2SC3250 Datasheet PDF - SavantIC SILICON POWER TRANSISTOR Specs

2SC3250 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-220 package High VCEO Large PC APPLICATIONS For TV video output amplifier applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PC Tj Tstg PARAMETER Collector-base volta

Datasheet Details

Part number	2SC3250
Manufacturer	SavantIC
File Size	116.01 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC3250 Datasheet
Additional preview pages of the 2SC3250 datasheet.

📁 Similar Datasheet

2SC3250 - NPN Transistor (INCHANGE)

2SC3252 - Power Transistor (Inchange Semiconductor)

2SC3253 - NPN Transistor (INCHANGE)

2SC3253 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SC3253 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)

2SC3254 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SC3254 - NPN Transistor (INCHANGE)

2SC3255 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SC3255 - NPN Transistor (INCHANGE)

2SC3256 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

Full PDF Text Transcription

Click to expand full text

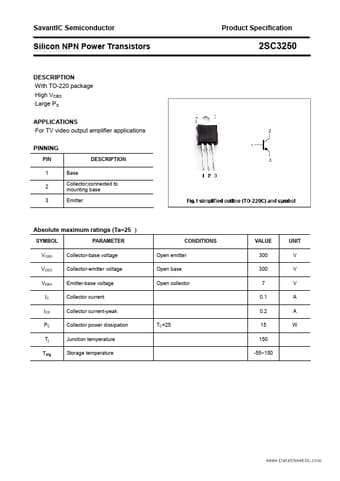

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3250 DESCRIPTION ·With TO-220 package ·High VCEO ·Large PC APPLICATIONS ·For TV video output amplifier applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 300 300 7 0.1 0.2 15 150 -55~150 UNIT V V V A A W SavantIC Semiconductor www.DataSheet4U.
