2SC3252 - Power Transistor

2SC3252 Description

isc Silicon NPN Power Transistor .
Low Collector Saturation Voltage. Good Linearity of hFE. High Switching Speed. Complement to Type 2SA1288. Minimum Lot-to-Lot var.

2SC3252 Applications

* Various inductance lamp drivers for electrical equipment
* Inverters, converters
* Power amplifier
* Switching regulator, dirver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter

📥 Download Datasheet

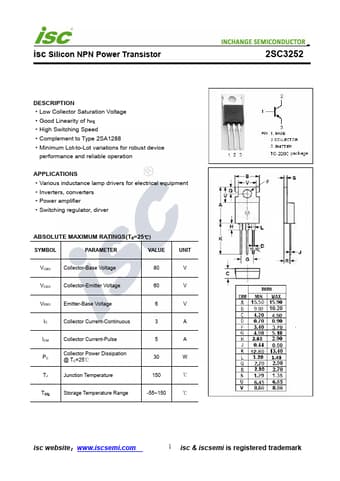

Preview of 2SC3252 PDF
datasheet Preview Page 2
