2SC3123 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SC3123

Manufacturer:

Inchange Semiconductor

File Size:

187.41kb

Download:

📄 Datasheet

Description:

Silicon npn rf transistor.

  • High Conversion Gain Gce = 23dB TYP.
  • Low Reverse Transfer Capacitance Cre = 0.4pF TYP.
  • Minimum Lot-to-Lot

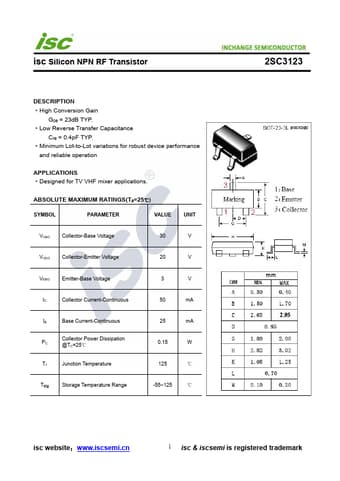

  • Datasheet Preview: 2SC3123 📥 Download PDF (187.41kb)
    Page 2 of 2SC3123

    2SC3123 Application

    • Applications
    • Designed for TV VHF mixer applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base
