2SC4294 - NPN Transistor

2SC4294 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC4294 .
High Breakdown Voltage- : V(BR)CBO= 1500V(Min). High Switching Speed. High Reliability. Built-in Damper Diode. Good Linearity of.

2SC4294 Applications

* Ultrahigh-definition color display horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 6

📥 Download Datasheet

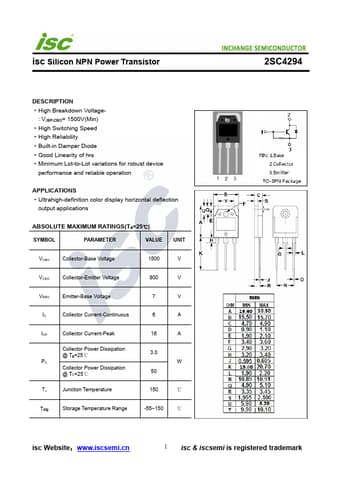

Preview of 2SC4294 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC4294
Manufacturer
INCHANGE
File Size
184.76 KB
Datasheet
2SC4294-INCHANGE.pdf
Description
NPN Transistor
