2SC4293 - NPN Triple Diffused Planar Silicon Transistor

2SC4293 Description

Ordering number:EN2963 NPN Triple Diffused Planar Silicon Transistor 2SC4293 Ultrahigh-Definition Color Display Horizontal Deflection Output Applicat.

2SC4293 Features

* High speed (tf=300ns max).
* High breakdown voltage (VCBO=1500V).
* High reliability (adoption of HVP process).
* Adoption of MBIT process.
* On-chip damper diode. Package Dimensions unit:mm 2039D [2SC4293] 16.0 3.4 5.6 3.1 5.0 8.0 22.0 2.0 21.0 4.0 Specifications Ab

📥 Download Datasheet

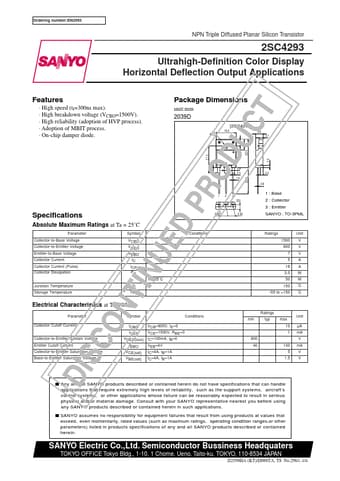

Preview of 2SC4293 PDF
