2SC4296 Silicon NPN Transistor

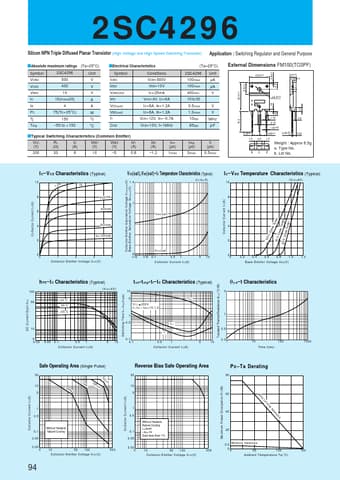

2SC4296 Silicon NPN Triple Diffused Planar Transistor (High Voltage and High Speed Switchihg Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC4296 500 400 10 10(Pulse20) 4 75(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Switching Regulator and General Purpose External Dimensions FM100(TO3PF) 0.8±0.2 15.6±0.2 5.5±0.2 3.45 ±0.2 5.5 ø3.3±0.2 1.6 sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Cond.
