* High speed (tf=0.3µs max).
* High breakdown voltage (VCBO=1500V).
* High reliability (adoption of HVP process).
* Adoption of MBIT process.
* On-chip damper diode. Package Dimensions unit:mm 2022A [2SC4291] 15.6 3.2 14.0 4.8 2.0 1.3 1.2 3.5 15.0 20.0 2.6 Specifications
2SC4291
Sanyo Semicon Device
38.73 KB

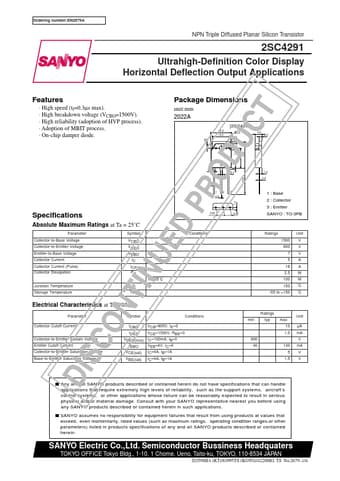

Npn triple diffused planar silicon transistor.
Ordering number:EN2679A
NPN Triple Diffused Planar Silicon Transistor
2SC4291
Ultrahigh-Definition Color Display Horizontal Deflection Output Applica.
