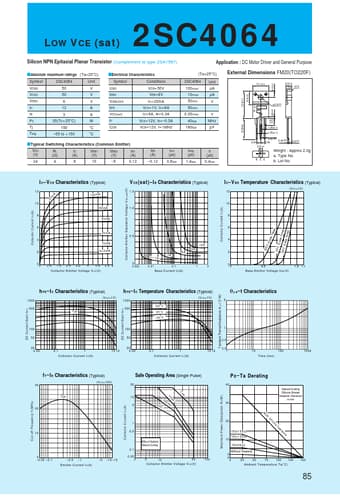

2SC4064
Sanken ↗ electric
24.54 KB
Silicon npn transistor.
LOW VCE (sat)
sAbsolute maximum ratings (Ta=25°C)
Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC4064 50 50 6 12 3 35(Tc=25°C) 150
*55 to +150 Unit.
