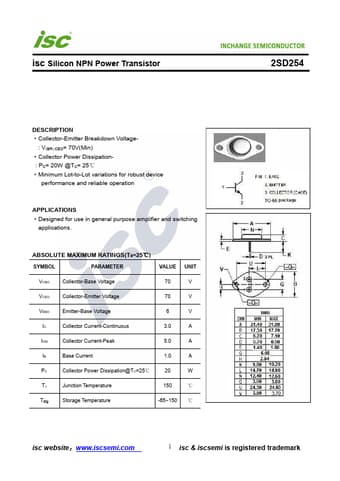

2SD254 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD254

Manufacturer:

INCHANGE

File Size:

177.11kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Breakdown Voltage- : V(BR) CEO= 70V(Min)

Collector Power Dissipation- : PC= 20W @TC= 25℃

2SD254 Application

• Applications
• Designed for use in general purpose amplifier and switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER
