2SD2526 Silicon NPN Transistor

2SD2526 Description

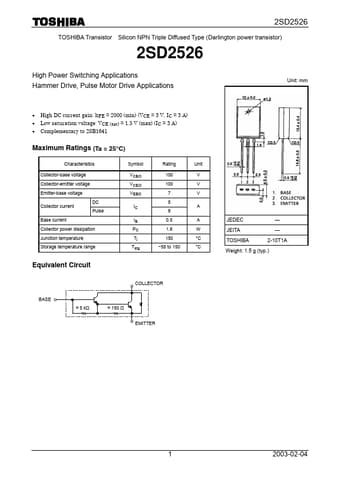

2SD2526 TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington power transistor) 2SD2526 High Power Switching Applications Hammer Drive, Pul.

2SD2526 Applications

* Hammer Drive, Pulse Motor Drive Applications Unit: mm
* High DC current gain: hFE = 2000 (min) (VCE = 3 V, IC = 3 A)
* Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 3 A)
* Complementary to 2SB1641 Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-
