2SD2539
Toshiba ↗ Semiconductor
172.85 KB
Npn triple diffused planar silicon transistor.
2SD2539

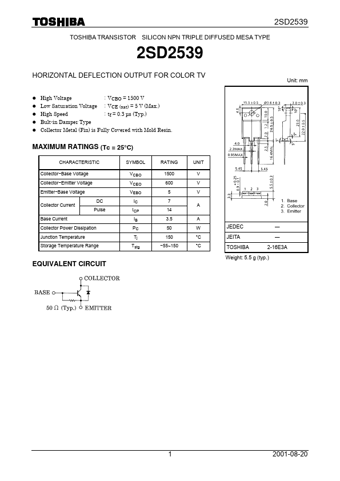

TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE
2SD2539
HORIZONTAL DEFLECTION OUTPUT FOR COLOR TV
l High Voltage
: VCBO = 1500 V
.
