2SD2531 Datasheet, transistor equivalent, Inchange Semiconductor

PDF File Details

Part number:

2SD2531

Manufacturer:

Inchange Semiconductor

File Size:

208.08kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

  • Low Collector Saturation Voltage- : VCE(sat)= 1.0 (Max)@ IC= 2.5A
  • High Power Dissipation- : PC= 25W@ TC= 25℃
  • <

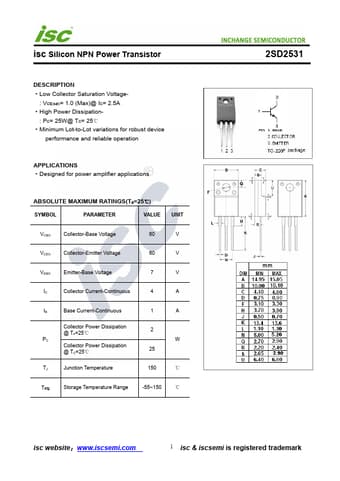

    Datasheet Preview: 2SD2531 📥 Download PDF (208.08kb)
    Page 2 of 2SD2531

    2SD2531 Application

    • Applications
    • Designed for power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-B
