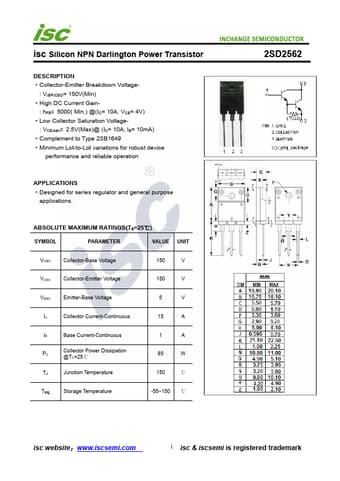

Part number: 2SD2562
Manufacturer: Inchange Semiconductor
File Size: 222.92KB
Download: 📄 Datasheet
Description: Silicon NPN Darlington Power Transistor
*Designed for series regulator and general purpose
applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETE.
*Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 150V(Min)
*High DC Current Gain-
: hFE= 5000( Min.) @(IC= 10A, VCE= 4V)
*Low Collector Saturation Voltage-
: VCE(sat)= 2.5V(Max)@ (IC= 10A, IB= 10mA)
*Complement to Type 2SB1649
*M.
