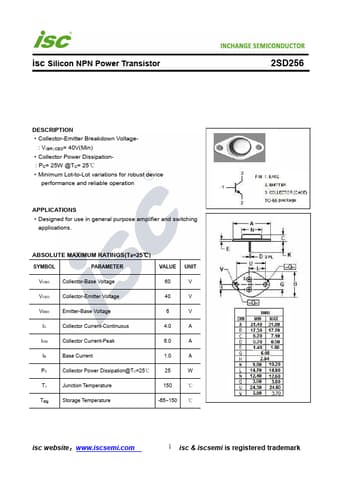

Part number: 2SD256
Manufacturer: INCHANGE
File Size: 180.74KB
Download: 📄 Datasheet
Description: Silicon NPN Power Transistor
*Designed for use in general purpose amplifier and switching
applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL.
*Collector-Emitter Breakdown Voltage-
: V(BR) CEO= 40V(Min)
*Collector Power Dissipation-
: PC= 25W @TC= 25℃
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Designed for use in genera.
