2SD2538 - Silicon NPN Transistor

Panasonic Semiconductor

The 2SD2538 by Panasonic Semiconductor is a Silicon NPN Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SD2538
Manufacturer	Panasonic Semiconductor
File Size	45.77 KB
Description	Silicon NPN Transistor
Datasheet	2SD2538_PanasonicSemiconductor.pdf

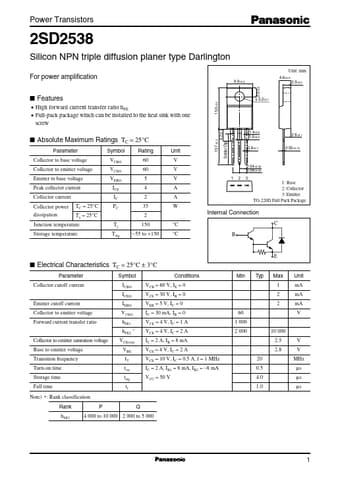

Additional preview pages of the 2SD2538 datasheet.

High forward current transfer ratio hFE.
Full-pack package which can be installed to the heat sink with one screw 9.9±0.3 3.0±0.5 4.6±0.2 2.9±0.2 13.7±0.2 4.2±0.2 Solder Dip 15.0±0.5 φ 3.2±0.1 I Absolute Maximum Ratings TC = 25°C Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation TC = 25°C Ta = 25°C Tj Tstg Symbol VCBO VCEO VEBO ICP IC PC Rating 60 60 5 4 2 35 2 150.
