Part number:
2SD2537
Manufacturer:
File Size:
62.64 KB
Description:
Medium power transistor.

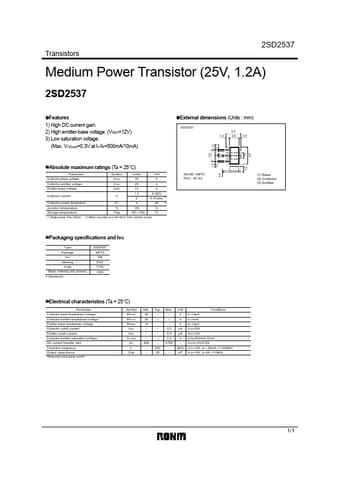

* 1) High DC current gain. 2) High emitter-base voltage. (VEBO=12V) 3) Low saturation voltage. (Max. VCE(sat)=0.3V at IC/IB=500mA/10mA) !External dimensions (Units : mm) 2SD2537 4.0 1.0 2.5 0.5 1.5 0.4 (1) 3.0 0.5 (3) Collector-base voltage Collector-emitter voltage Emitter-base voltage Collecto
2SD2537
62.64 KB
Medium power transistor.
