2SK2543 N-Channel MOSFET

2SK2543 Description

isc N-Channel MOSFET Transistor *.

2SK2543 Features

* Static drain-source on-resistance: RDS(on) ≤0.85Ω
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION
* Be suitable for synchronous rectification for server and gen

2SK2543 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 500 VGS Gate-Source Voltage ±30 ID Drain Current-Continuous 8 IDM Drain Current-Single Pulsed 32 PD Total Dissipation @TC=25℃ 40 Tj Max. Operating Junction Temperature 150 Tstg Storage Temp

📥 Download Datasheet

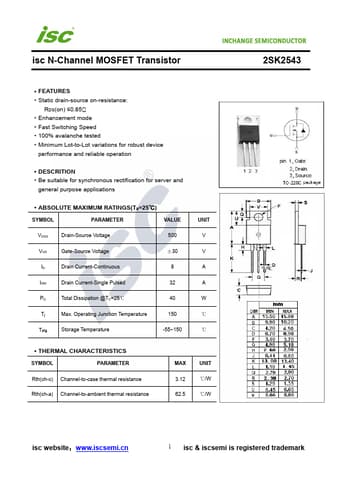

Preview of 2SK2543 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK2543
Manufacturer
INCHANGE
File Size
255.13 KB
Datasheet
2SK2543-INCHANGE.pdf
Description
N-Channel MOSFET
