3DD100B - NPN Transistor

3DD100B Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor 3DD100B .
With TO-66 packaging. Large collector current. Low collector saturation voltage. High power dissipation. Minimum Lot-to-Lot varia.

3DD100B Applications

* Designed for use in DC-DC converter
* Driver of solenoid or motor ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 150 V VEBO Emitter-Base Voltage 4 V IC Collector Current-Continuous 1.5 A PD

📥 Download Datasheet

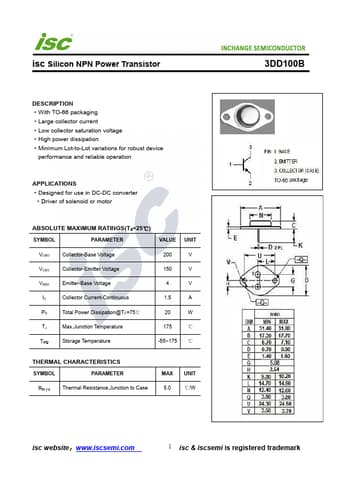

Preview of 3DD100B PDF
datasheet Preview Page 2

Datasheet Details

Part number
3DD100B
Manufacturer
INCHANGE
File Size
180.96 KB
Datasheet
3DD100B-INCHANGE.pdf
Description
NPN Transistor
