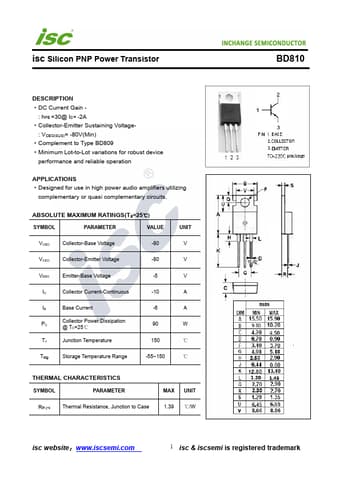

Part number: BD810
Manufacturer: INCHANGE
File Size: 208.66KB
Download: 📄 Datasheet
Description: PNP Transistor
*Designed for use in high power audio amplifiers utilizing
complementary or quasi complementary circuits.
ABSOLUTE .
*DC Current Gain -
: hFE =30@ IC= -2A
*Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= -80V(Min)
*Complement to Type BD809
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Desig.
