BDW24B, BDW24 - PNP Transistor

BDW24B Description

isc Silicon PNP Darlington Power Transistor .
Collector Current -IC= -6A. High DC Current Gain-hFE= 750(Min)@ IC= -2A. Complement to Type BDW23/A/B/C. Minimum Lot-to-Lot variation.

BDW24B Applications

* Designed for hammer drivers, audio amplifiers applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BDW24 -45 BDW24A -60 VCER Collector-Emitter Voltage V BDW24B -80 BDW24C -100 BDW24 -45 BDW24A -60 VCEO Collector-Emitter Voltage V BDW24B -80 BDW24C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BDW24B, BDW24. Please refer to the document for exact specifications by model.

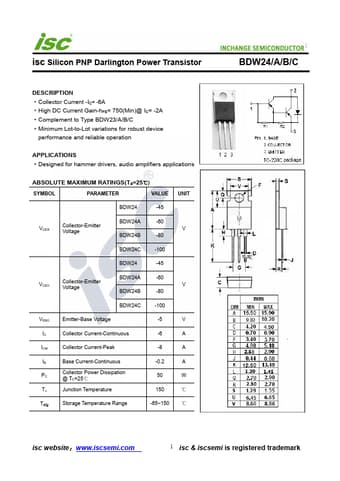

datasheet Preview Page 2
