BU2515AF NPN Transistor

BU2515AF Description

isc Silicon NPN Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V (Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device perf.

BU2515AF Applications

* Designed for use in horizontal deflection circuits of PC monitors. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7.5 V IC Collector Current- Continuous

📥 Download Datasheet

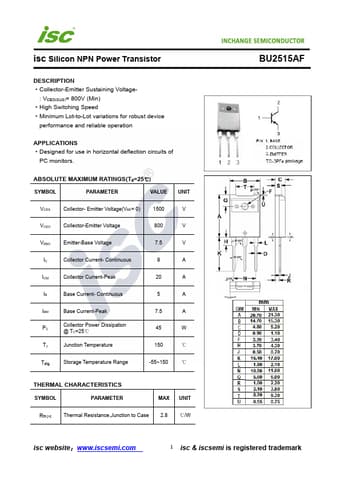

Preview of BU2515AF PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU2515AF
Manufacturer
INCHANGE
File Size
207.39 KB
Datasheet
BU2515AF-INCHANGE.pdf
Description
NPN Transistor
