BU2515DF, NPN Transistor

isc Silicon NPN Power Transistor BU2515DF .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V (Min). High Switching Speed. Built-in Damper Diode. Minimum Lot-to-Lot variat.

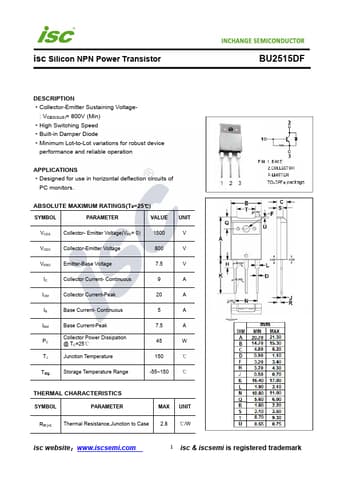

datasheet Preview Page 1 from Datasheet4u.com

BU2515DF-INCHANGE.pdf

BU2515DF Datasheet Preview — Preview of BU2515DF PDF

Datasheet Details

Part number:

BU2515DF

Manufacturer:

INCHANGE

File Size:

208.96 KB

Description:

NPN Transistor

Applications

* Designed for use in horizontal deflection circuits of PC monitors. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7.5 V IC Collector Current- Continuous
