BU2515DX NPN Transistor

BU2515DX Description

isc Silicon NPN Power Transistor BU2515DX .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V (Min). High Switching Speed. Built-in Damper Diode. Minimum Lot-to-Lot variat.

BU2515DX Applications

* Designed for use in horizontal deflection circuits of PC monitors. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7.5 V IC Collector Current- Continuous

📥 Download Datasheet

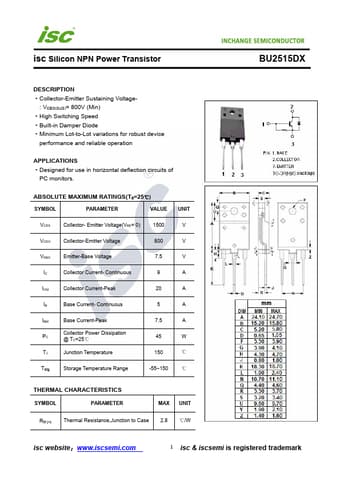

Preview of BU2515DX PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU2515DX
Manufacturer
INCHANGE
File Size
213.04 KB
Datasheet
BU2515DX-INCHANGE.pdf
Description
NPN Transistor
