BU2506DF NPN Transistor

BU2506DF Description

isc Silicon NPN Power Transistor BU2506DF .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 700V (Min). High Switching Speed. Built-in Damper Diode. Minimum Lot-to-Lot variat.

BU2506DF Applications

* Designed for use in horizontal deflection circuits of color TV receivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 7.5 V IC Collector Current- Cont

📥 Download Datasheet

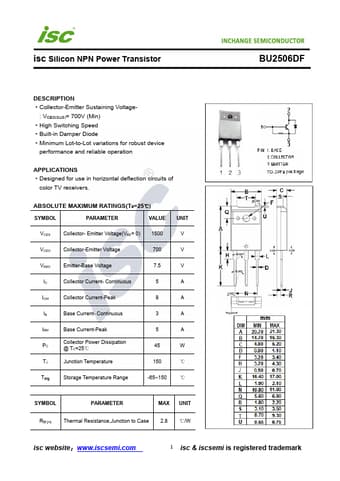

Preview of BU2506DF PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU2506DF
Manufacturer
INCHANGE
File Size
209.32 KB
Datasheet
BU2506DF-INCHANGE.pdf
Description
NPN Transistor
