Datasheet Details
- Part number
- BU2520A
- Manufacturer
- INCHANGE
- File Size
- 211.29 KB
- Datasheet
- BU2520A-INCHANGE.pdf
- Description
- NPN Transistor

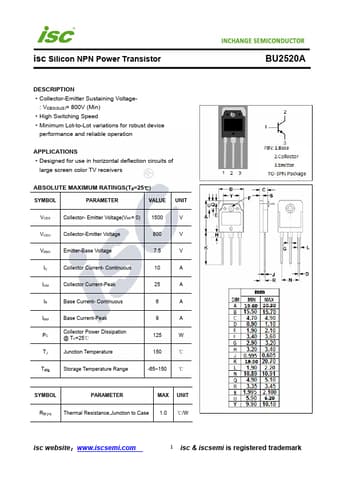

BU2520A Description
isc Silicon NPN Power Transistor .
Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= 800V (Min).
High Switching Speed.
Minimum Lot-to-Lot variations for robust device
perf.
BU2520A Applications
* Designed for use in horizontal deflection circuits of
large screen color TV receivers
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCES
Collector- Emitter Voltage(VBE= 0) 1500
V
VCEO
Collector-Emitter Voltage
800
V
VEBO
Emitter-Base Voltage
7.5
V
IC
Collector C
