D40C7 - NPN Transistor

D40C7 Description

isc Silicon NPN Darlington Power Transistor D40C7 .
High DC Current Gain- : hFE = 10K-70K. Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 50V(Min). Minimum Lot-to-Lot variations for ro.

D40C7 Applications

* Designed for general-purpose amplifier and low-speed switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 13 V IC Collector Current-Continuous 0.5 A

📥 Download Datasheet

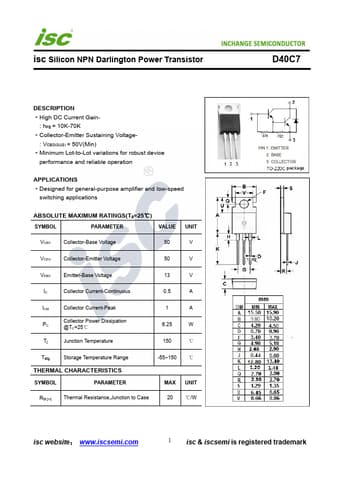

Preview of D40C7 PDF
datasheet Preview Page 2

Datasheet Details

Part number
D40C7
Manufacturer
INCHANGE
File Size
215.54 KB
Datasheet
D40C7-INCHANGE.pdf
Description
NPN Transistor
