IRF6218S - P-Channel MOSFET

Datasheet Summary

Features

  • Static drain-source on-resistance: RDS(on)≤150mΩ(@VGS= -10V; ID= -16A).
  • Advanced trench process technology.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

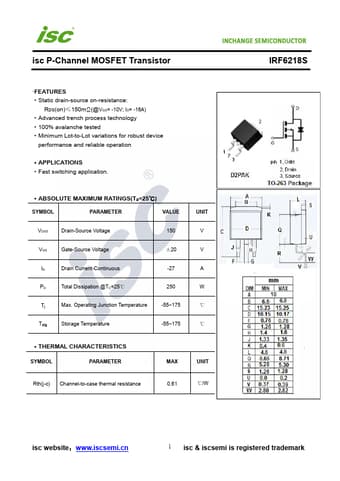

Datasheet preview – IRF6218S

Datasheet Details

Part number IRF6218S
Manufacturer INCHANGE
File Size 248.44 KB
Description P-Channel MOSFET
Datasheet download datasheet IRF6218S Datasheet
Additional preview pages of the IRF6218S datasheet.

📁 Similar Datasheet

  • IRF6218S - Power MOSFET (International Rectifier)
  • IRF6218SPbF - Power MOSFET (Infineon)
  • IRF6218 - SMPS MOSFET (International Rectifier)
  • IRF6218L - Power MOSFET (International Rectifier)
  • IRF6218PBF - HEXFET Power MOSFET (International Rectifier)
  • IRF621 - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF621 - N-Channel MOSFET (STMicroelectronics)
  • IRF621 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF6215 - HEXFET Power MOSFET (International Rectifier)
  • IRF6215L - (IRF6215L/S) HEXFET Power MOSFET (International Rectifier)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc P-Channel MOSFET Transistor ·FEATURES ·Static drain-source on-resistance: RDS(on)≤150mΩ(@VGS= -10V; ID= -16A) ·Advanced trench process technology ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Fast switching application. ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 150 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous -27 PD Total Dissipation @TC=25℃ 250 Tj Max. Operating Junction Temperature -55~175 Tstg Storage Temperature -55~175 UNIT V V A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth(j-c) Channel-to-case thermal resistance 0.61 ℃/W IRF6218S isc website：www.iscsemi.
