IRFI4510G, N-Channel MOSFET

isc N-Channel MOSFET Transistor IRFI4510G,IIRFI4510G *.

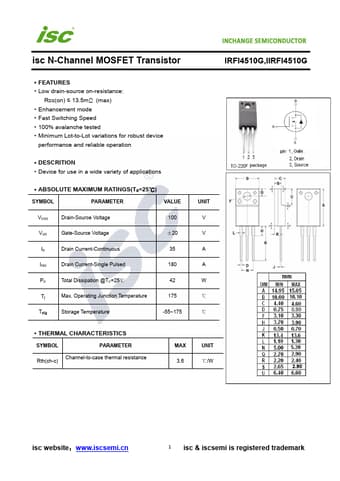

datasheet Preview Page 1 from Datasheet4u.com

IRFI4510G-INCHANGE.pdf

IRFI4510G Datasheet Preview — Preview of IRFI4510G PDF

Datasheet Details

Part number:

IRFI4510G

Manufacturer:

INCHANGE

File Size:

240.97 KB

Description:

N-Channel MOSFET

Features

* Low drain-source on-resistance: RDS(on) ≤ 13.5mΩ (max)
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 35 IDM Drain Current-Single Pulsed 180 PD Total Dissipation @TC=25℃ 42 Tj Max. Operating Junction Temperature 175 Tstg Storage Te
