STF15NM60ND - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

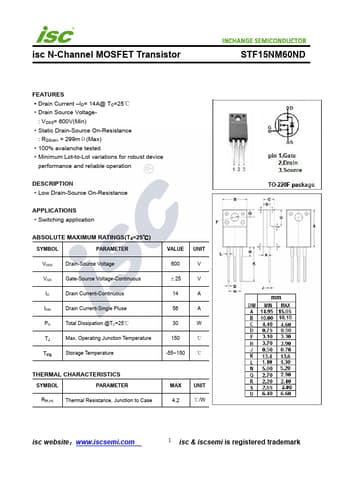

STF15NM60ND Datasheet Preview — Preview of STF15NM60ND PDF

Datasheet Details

Part number	STF15NM60ND
Manufacturer	INCHANGE
File Size	262.15 KB
Description	N-Channel MOSFET
Datasheet	STF15NM60ND-INCHANGE.pdf

STF15NM60ND Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 600 V ±25 V 14 A 56 A 30 W 150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Ju

Features

Drain Current.
ID= 14A@ TC=25℃.
Drain Source Voltage- : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 299mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
