STF15NM60N Datasheet - STMicroelectronics

N-channel Power MOSFET

STF15NM60N Features

* www.DataSheet4U.com Type VDSS (@Tjmax) 650V 650V 650V 650V 650V RDS(on) < 0.299Ω < 0.299Ω < 0.299Ω < 0.299Ω < 0.299Ω ID 1 3 3 12 STB15NM60N STI15NM60N STF15NM60N STP15NM60N STW15NM60N 14A 14A 14A (1) 14A 14A D²PAK I²PAK TO-247 3 1 2 3 1 2 1. Limited only by maximum temperature allowed

STF15NM60N General Description

This series of devices implements the second generation of MDmesh™ Technology. This revolutionary Power MOSFET associates a new vertical structure to the Company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high effi.

STF15NM60N Datasheet (647.76 KB)

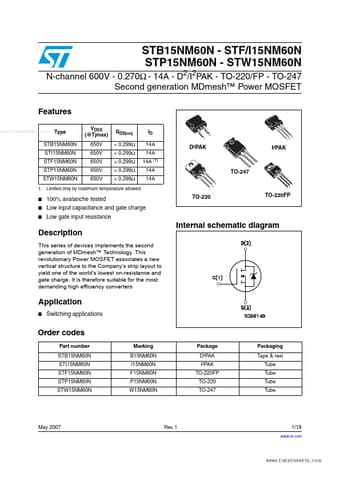

STF15NM60N Datasheet Preview — Preview of STF15NM60N PDF

Datasheet Details

Part number:

STF15NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

647.76 KB

Description:

N-channel power mosfet.
STB15NM60N - STF/I15NM60N STP15NM60N - STW15NM60N N-channel 600V - 0.270Ω - 14A - D2/I2PAK - TO-220/FP - TO-247 Second generation MDmesh™ Power MOSFET.
