STF15NM60ND Datasheet - STMicroelectronics

N-channel Power MOSFET

STF15NM60ND Features

* www.DataSheet4U.com Type VDSS (@Tjmax) RDS(on) max ID 14 A 14 A 14 A(1) 14 A 14 A 3 1 3 12 STB15NM60ND STF15NM60ND STI15NM60ND STP15NM60ND STW15NM60ND 650 V 0.299 Ω D2PAK 2 1 3 I²PAK TO-247 3 1 2 1 2 3 1. Limited only by maximum temperature allowed

* The worldw

STF15NM60ND General Description

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.Strongly .

STF15NM60ND Datasheet (641.85 KB)

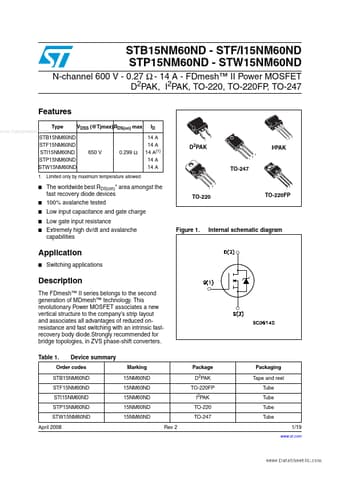

STF15NM60ND Datasheet Preview — Preview of STF15NM60ND PDF

Datasheet Details

Part number:

STF15NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

641.85 KB

Description:

N-channel power mosfet.
STB15NM60ND - STF/I15NM60ND STP15NM60ND - STW15NM60ND N-channel 600 V - 0.27 Ω - 14 A - FDmesh™ II Power MOSFET D2PAK, I2PAK, TO-220, TO-220FP, TO-247.
