STF26NM60N - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

STF26NM60N Datasheet Preview — Preview of STF26NM60N PDF

Datasheet Details

Part number	STF26NM60N
Manufacturer	INCHANGE
File Size	261.96 KB
Description	N-Channel MOSFET
Datasheet	STF26NM60N-INCHANGE.pdf

STF26NM60N Product details

Description

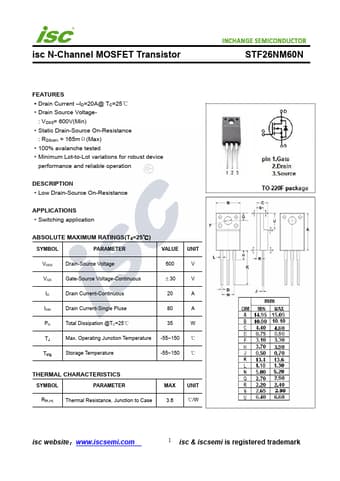

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 20 A IDM Drain Current-Single Pluse 80 A PD Total Dissipation @TC=25℃ 35 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,

Features

Drain Current.
ID=20A@ TC=25℃.
Drain Source Voltage- : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 165mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
