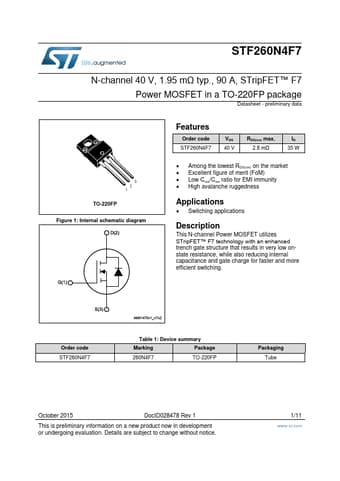

STF260N4F7 Datasheet, Mosfet, STMicroelectronics

STF260N4F7 Features

• Mosfet Order code STF260N4F7 VDS 40 V RDS(on) max. 2.5 mΩ ID 35 W
• Among the lowest RDS(on) on the market
• Excellent figure of merit (FoM)
• Low Crss/Ciss ratio f

PDF File Details

Part number:

STF260N4F7

Manufacturer:

STMicroelectronics ↗

File Size:

360.67kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

STF260N4F7 Application

• Applications
• Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate
