STF26NM60N

N-channel MOSFET

STF26NM60N Features

* Order code STF26NM60N VDS 600 V RDS(on) max 0.165 Ω ID 20 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

* Switching applications Description This device is an N-channel Power MOSFET developed using the second generation

STF26NM60N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .

STF26NM60N Datasheet (657.00 KB)

Preview of STF26NM60N PDF

Datasheet Details

Part number:

STF26NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

657.00 KB

Description:

N-channel mosfet.

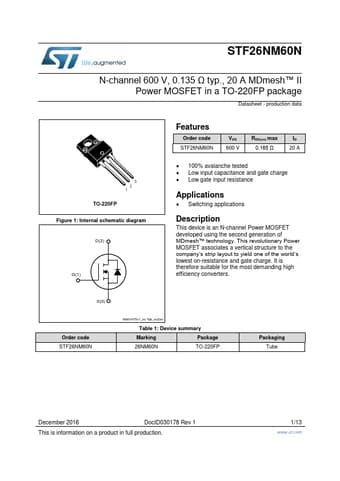

STF26NM60N N-channel 600 V, 0.135 Ω typ., 20 A MDmesh™ II Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Internal.
