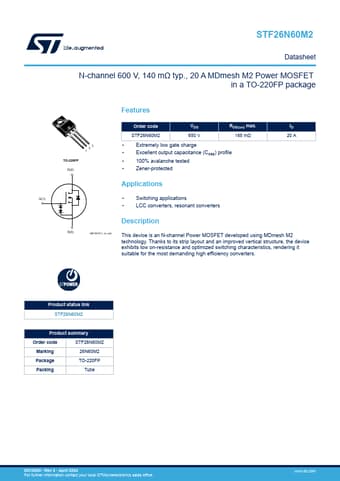

STF26N60M2 Datasheet, Mosfet, STMicroelectronics

STF26N60M2 Features

• Mosfet Order code VDS RDS(on) max. ID STF26N60M2 650 V 165 mΩ 20 A 3 2 1 TO-220FP D(2)
• Extremely low gate charge
• Excellent output capacitance (Coss) profile

PDF File Details

Part number:

STF26N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

223.27kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. S(3) AM15572v1_no_tab This device is an N-channel Power MOSFET developed using MDmesh M2 technology. Thanks to its strip layout an

STF26N60M2 Application

• Applications G(1)
• Switching applications
• LCC converters, resonant converters Description S(3) AM15572v1_no_tab This device
