STPS2045CT Datasheet, Rectifier, INCHANGE

STPS2045CT Features

  • Rectifier
  • With TO-220 packaging
  • High junction temperature capability
  • Low forward voltage drop
  • High current capability
  • Low power loss, high efficiency

PDF File Details

Part number:

STPS2045CT

Manufacturer:

INCHANGE

File Size:

230.90kb

Download:

📄 Datasheet

Description:

Schottky barrier rectifier.

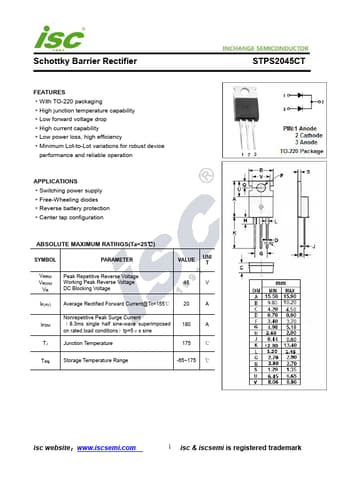

Datasheet Preview: STPS2045CT 📥 Download PDF (230.90kb)
Page 2 of STPS2045CT

STPS2045CT Application

  • Applications
  • Switching power supply
  • Free-Wheeling diodes
  • Reverse battery protection
  • Center tap configuration AB

TAGS

STPS2045CT
Schottky
Barrier
Rectifier
INCHANGE
