STPS20M100SG-TR Schottky Barrier Rectifier

STPS20M100SG-TR Description

Schottky Barrier Rectifier STPS20M100SG-TR .

STPS20M100SG-TR Features

* Schottky Barrier Chip
* Low forward voltage drop meaning very small conduction losses
* Reverse voltage

STPS20M100SG-TR Applications

* Switching diode
* SMPS
* DC/DC converter ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current 100 V 20 A Nonrepetitive Peak Surge Curre

📥 Download Datasheet

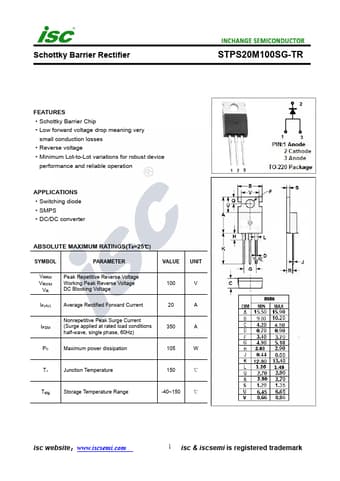

Preview of STPS20M100SG-TR PDF
datasheet Preview Page 2

Datasheet Details

Part number
STPS20M100SG-TR
Manufacturer
INCHANGE
File Size
238.25 KB
Datasheet
STPS20M100SG-TR-INCHANGE.pdf
Description
Schottky Barrier Rectifier
