STPS20M100S

Power Schottky rectifier

ST Microelectronics

STPS20M100S Features

* Low forward voltage drop meaning very small conduction losses

* Avalanche rated

* Low frequency operation

* Insulated package TO-220FPAB:

* Insulating voltage = 2000 VRMS sine

* ECOPACK®2 compliant component for D²PAK on demand Applications

STPS20M100S General Description

This single Schottky rectifier is suited for high frequency switch mode power supply. Packaged in TO-220AB, TO-220FPAB, D²PAK and I²PAK, the STPS20M100S is intended to be used in notebook, game station and desktop adaptors, providing in these applications a good efficiency at both low and high load..

STPS20M100S Datasheet (365.02 KB)

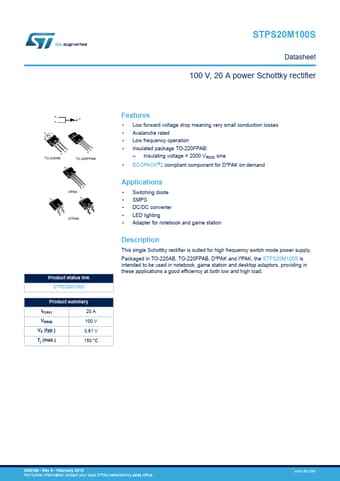

STPS20M100S Datasheet Preview — Preview of STPS20M100S PDF

Datasheet Details

Part number:

STPS20M100S

Manufacturer:

STMicroelectronics ↗

File Size:

365.02 KB

Description:

Power schottky rectifier.
STPS20M100S Datasheet 100 V, 20 A power Schottky rectifier A K A K A K A TO-220AB K A K A TO-220FPAB A AK I2PAK K K A A A A D2PAK Product st.
