STPS20M120S Power Schottky rectifier

STPS20M120S Description

STPS20M120S Power Schottky rectifier Datasheet * production data .
This Schottky diode is suited for high frequency switch mode power supply.

STPS20M120S Applications

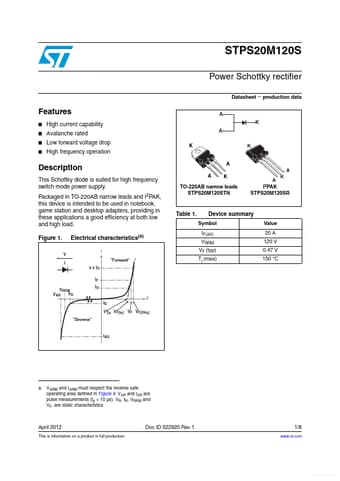

* a good efficiency at both low and high load. Figure 1. V I 2 x IO IF VRRM VR VAR IO A A K A K TO-220AB narrow leads STPS20M120STN I2PAK STPS20M120SR Table 1. Device summary Symbol IF(AV) VRRM VF (typ) Tj (max) Value 20 A 120 V 0.47 V 150 °C Electrical characteristics(a) I "Forward" X X V
