STPS20M60 Power Schottky rectifier

STPS20M60 Description

STPS20M60 Power Schottky rectifier .
The STPS20M60D is a single diode Schottky rectifier, suited for high frequency switch mode power supply.

STPS20M60 Applications

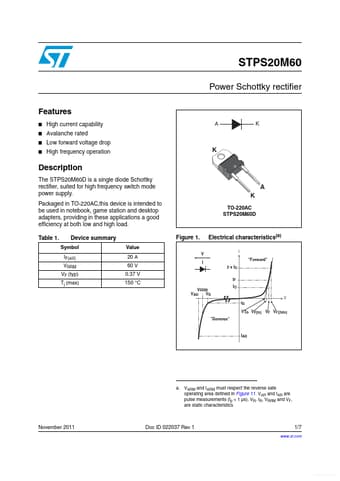

* a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM VF (typ) Tj (max) Value 20 A 60 V 0.37 V 150 °C VRRM VR VAR IF IO V I 2 x IO A K TO-220AC STPS20M60D Figure 1. Electrical characteristics(a) I "Forward" X X V IR VTo VF(Io) VF VF(2xIo) "Reverse" IAR a. VA
