STPS20H100CT Schottky Rectifier

STPS20H100CT Description

High Voltage Power Schottky Rectifier INCHANGE Semiconductor STPS20H100CT .

STPS20H100CT Features

* Plastic material used carriers Underwriter Laboratory
* Metal silicon junction, majority carrier conduction
* Low Power Loss,high Efficiency
* Guard ring for overvoltage protection
* High Surge Capability,High Current Capability
* Minimum Lot-to-Lot variations for robust device p

STPS20H100CT Applications

* For use in low voltage,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRWM VR IF(RMS) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Forward current VALUE UNIT 100

📥 Download Datasheet

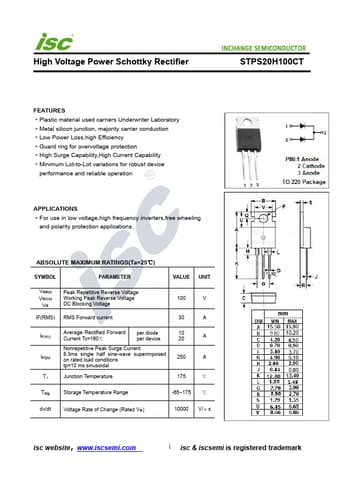

Preview of STPS20H100CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
STPS20H100CT
Manufacturer
INCHANGE
File Size
185.55 KB
Datasheet
STPS20H100CT-INCHANGE.pdf
Description
Schottky Rectifier
