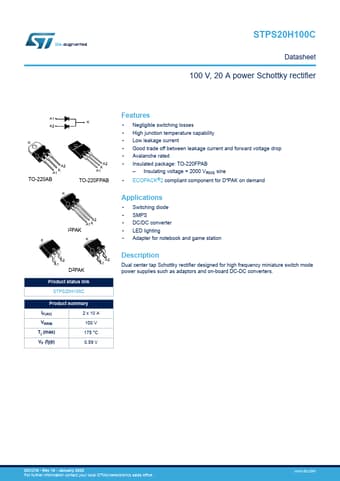

STPS20H100C Datasheet, Rectifier, STMicroelectronics

✔ STPS20H100C Features

Negligible switching losses
High junction temperature capability
Low leakage current
Good trade off between leakage current and forward voltage drop
Avalanche r

✔ STPS20H100C Application

Switching diode
SMPS
DC/DC converter
LED lighting
Adapter for notebook and game station Descriptio

PDF File Details

STMicroelectronics manufacturer logo

Part number:

STPS20H100C

Manufacturer:

STMicroelectronics ↗

File Size:

361.03kb

Download:

📄 Datasheet

Description:

100v power schottky rectifier. Dual center tap Schottky rectifier designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-

📥 Download PDF (361.03kb)
