STPS20H100CT, STPS20H100CF HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS20H100CT Description

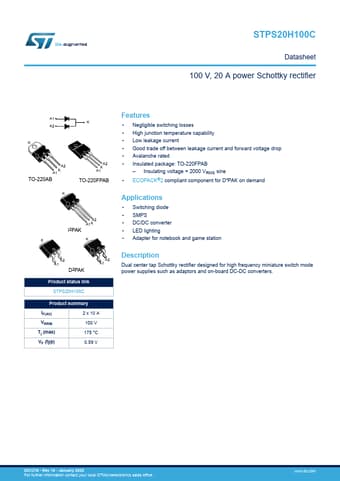

STPS20H100C Datasheet 100 V, 20 A power Schottky rectifier A1 K A2 K A2 A1 K TO-220AB K A2 K A1 TO-220FPAB A2 A1 K I2PAK K K A2 A1 D2PAK A2 A1.
Dual center tap Schottky rectifier designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters.

STPS20H100CT Features

* Negligible switching losses
* High junction temperature capability
* Low leakage current
* Good trade off between leakage current and forward voltage drop
* Avalanche rated
* Insulated package: TO-220FPAB
* Insulating voltage = 2000 VRMS sine

STPS20H100CT Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20H100CT, STPS20H100CF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20H100CT, STPS20H100CF
Manufacturer
STMicroelectronics ↗
File Size
361.03 KB
Datasheet
STPS20H100CF_STMicroelectronics.pdf
Description
HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS20H100CT, STPS20H100CF.
Please refer to the document for exact specifications by model.
