STPS20H100CG-1, STPS20H100CF HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS20H100CG-1 Description

® STPS20H100CT/CF/CG/CG-1 HIGH VOLTAGE POWER SCHOTTKY RECTIFIER www.datasheet4u.com MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj VF (max) .
Dual center tap schottky rectifier designed for high frequency miniature Switched Mode Power Supplies such as adaptators and on board DC/DC converters.

STPS20H100CG-1 Features

* n 2 x 10 A 100 V 175°C 0.64 V A1 K A2 n n n n n NEGLIGIBLE SWITCHING LOSSES HIGH JUNCTION TEMPERATURE CAPABILITY GOOD TRADE OFF BETWEEN LEAKAGE CURRENT AND FORWARD VOLTAGE DROP LOW LEAKAGE CURRENT AVALANCHE RATED INSULATED PACKAGE: ISOWATT220AB Insulating Voltage = 2000V DC Capacitance = 45

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20H100CG-1, STPS20H100CF. Please refer to the document for exact specifications by model.

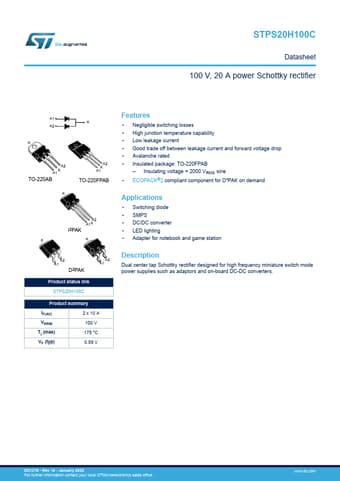

datasheet Preview Page 2 datasheet Preview Page 3
