STPS20H100

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS20H100 Features

* n 2 x 10 A 100 V 175°C 0.64 V A1 K A2 n n n n n NEGLIGIBLE SWITCHING LOSSES HIGH JUNCTION TEMPERATURE CAPABILITY GOOD TRADE OFF BETWEEN LEAKAGE CURRENT AND FORWARD VOLTAGE DROP LOW LEAKAGE CURRENT AVALANCHE RATED INSULATED PACKAGE: ISOWATT220AB Insulating Voltage = 2000V DC Capacitance = 45

STPS20H100 General Description

Dual center tap schottky rectifier designed for high frequency miniature Switched Mode Power Supplies such as adaptators and on board DC/DC converters. ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) RMS forward current Average forward current δ = 0.5 TO-220AB 2 2 D PAK / I .

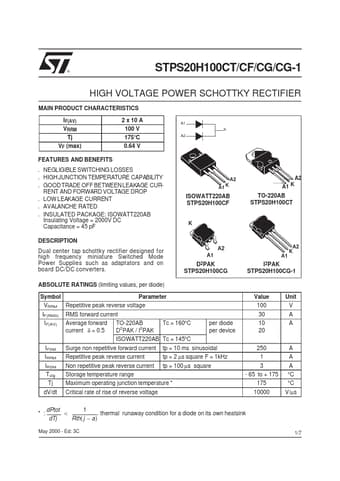

STPS20H100 Datasheet (87.80 KB)

Preview of STPS20H100 PDF

Datasheet Details

Part number:

STPS20H100

Manufacturer:

STMicroelectronics ↗

File Size:

87.80 KB

Description:

High voltage power schottky rectifier.
