STPS30150CW - Schottky Barrier Rectifier

STPS30150CW Description

Schottky Barrier Rectifier INCHANGE Semiconductor STPS30150CW .

STPS30150CW Features

* With TO-247 packaging
* High Junction Temperature Capability
* Low forward voltage, high current capability
* High current capability
* Low power loss, high efficiency

STPS30150CW Applications

* Switching power supply
* Free-Wheeling diodes
* Reverse battery protection
* Center tap configuration ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRMS VR IF(AV) Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage Average Rectified Forward Current @Tc=110℃ V

📥 Download Datasheet

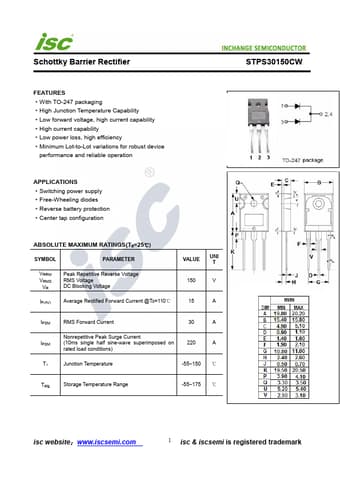

Preview of STPS30150CW PDF
datasheet Preview Page 2

Datasheet Details

Part number
STPS30150CW
Manufacturer
INCHANGE
File Size
191.12 KB
Datasheet
STPS30150CW-INCHANGE.pdf
Description
Schottky Barrier Rectifier
