STPS30120C Datasheet, Rectifier, ST Microelectronics

STPS30120C Features

  • Rectifier
  • 2 x 15 A 120 V 175°C 0.57 V K A1 K A2 High junction temperature capability Avalanche rated Low leakage current Good trade-off between leakage

PDF File Details

Part number:

STPS30120C

Manufacturer:

STMicroelectronics ↗

File Size:

97.42kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Dual center tap Schottky rectifier suited for high frequency Switch Mode Power Supply. Packaged in TO-220AB, this device is intended

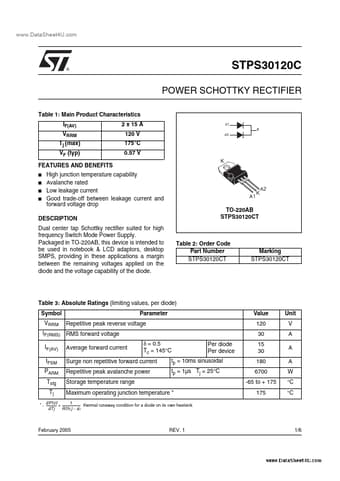

Datasheet Preview: STPS30120C 📥 Download PDF (97.42kb)
Page 2 of STPS30120C Page 3 of STPS30120C

STPS30120C Application

  • Applications a margin between the remaining voltages applied on the diode and the voltage capability of the diode. TO-220AB STPS30120CT Table 2: O
