STPS30170DJF - Power Schottky rectifier

STPS30170DJF Description

STPS30170DJF Power Schottky rectifier .
This Schottky rectifier is designed for switch mode power supply and high frequency DC to DC converters.

STPS30170DJF Applications

* Its low profile was especially designed to be used in applications with space-saving constraints. A PowerFLAT 5x6 STPS30170DJF A Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF(typ) Value 30 A 170 V 150 °C 0.65 V TM: PowerFLAT is a trademark of STMicroelectronics May 2011 Doc ID 16749

📥 Download Datasheet

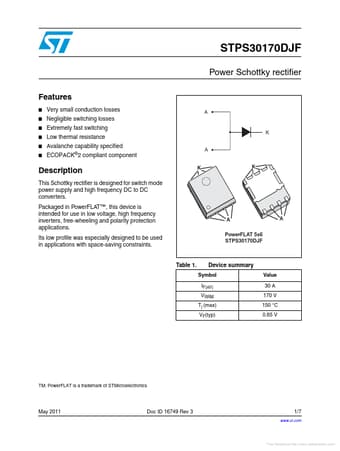

Preview of STPS30170DJF PDF
datasheet Preview Page 2 datasheet Preview Page 3
