STPS30150C - High voltage power Schottky rectifier

Datasheet Summary

Description

Dual center tap Schottky rectifier designed for high frequency switch mode power supply.

This is information on a product in full production.

Features

  • High junction temperature capability.
  • Good trade off between leakage current and forward voltage drop.
  • Low leakage current.
  • Avalanche capability specified.
  • Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine.

📥 Download Datasheet

Datasheet preview – STPS30150C

Datasheet Details

Part number STPS30150C
Manufacturer STMicroelectronics
File Size 562.19 KB
Description High voltage power Schottky rectifier
Datasheet download datasheet STPS30150C Datasheet
Additional preview pages of the STPS30150C datasheet.

📁 Similar Datasheet

  • STPS30150CFP - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CG - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS30150CT - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CW - Schottky Barrier Rectifier (INCHANGE)
  • STPS30170CG - High Voltage Power Schottky Rectifier (STMicroelectronics)
  • STPS30170CW - High Voltage Power Schottky Rectifier (STMicroelectronics)
  • STPS30170DJF - Power Schottky rectifier (STMicroelectronics)
  • STPS3030 - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS3030C - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS3045C - Power Schottky rectifier (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

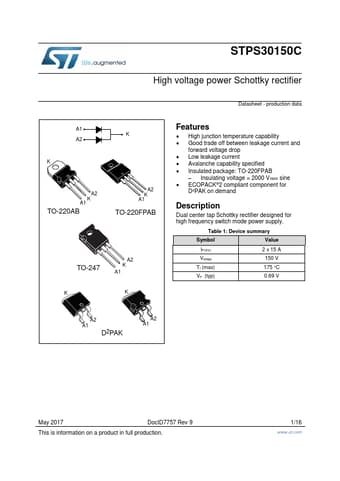

STPS30150C High voltage power Schottky rectifier Datasheet - production data A1 K A2 K A2 K A1 TO-220AB A2 K A1 TO-220FPAB TO-247 A2 K A1 K K Features  High junction temperature capability  Good trade off between leakage current and forward voltage drop  Low leakage current  Avalanche capability specified  Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine  ECOPACK®2 compliant component for D²PAK on demand Description Dual center tap Schottky rectifier designed for high frequency switch mode power supply. Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 2 x 15 A 150 V 175 °C 0.69 V A2 A1 D2PAK A2 A1 May 2017 DocID7757 Rev 9 This is information on a product in full production. 1/16 www.st.
