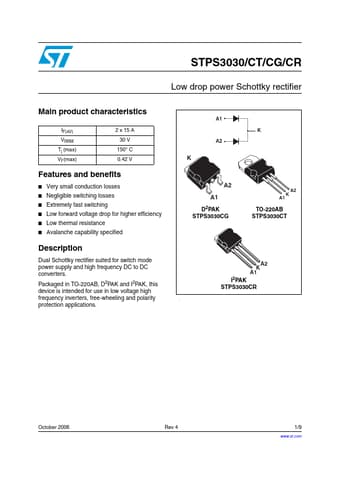

STPS3030/CT/CG/CR Low drop power Schottky rectifier Main product characteristics IF(AV) VRRM Tj (max) VF(max) 2 x 15 A 30 V 150° C 0.42 V .
Dual Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.
Features
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency
* Low thermal resistance
Applications
* A1 K
A2
K
A2
A1 D2PAK STPS3030CG
A2 K A1
TO-220AB STPS3030CT
A2 K A1 I2PAK STPS3030CR
j
October 2006
Rev 4
1/9
www. st. com
9
Characteristics
1
Characteristics
STPS3030CT/CG/CR
Table 1. Absolute ratings (limiting values, per diode)
Symbol
Parameter
Value
Unit
VRRM Repetitive peak r
